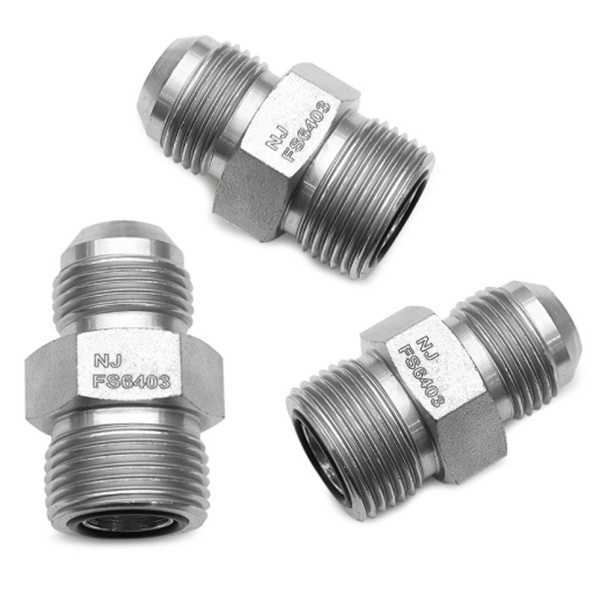

Hydraulické armatury JIC
Tvarovka JIC, známá také jako tvarovka Joint Industry Council, je typ závitu běžně používaný v hydraulických systémech. Jedná se o standardizovaný závit s úhlem rozšíření 37 stupňů, který je všeobecně uznáván pro svou spolehlivost a snadnou instalaci.
Popis
Tento produkt je tvarovka JIC (nebo Joint Industry Council), oba konce mají závit JIC, JIC je definován normami SAE J514 a MIL-DTL-18866. Jedná se o typ rozšířeného tvarovky s obráběnou dosedací plochou s rozšířeným úhlem 37 stupňů.
Běžně se používají a vyrábějí z mosazi, uhlíkové oceli a nerezové oceli. Hydraulické tvarovky JIC jsou běžné ve většině hydraulických systémů. Závit JIC se také dělí na vnější JIC a vnitřní JIC s otočnou maticí.
JIC lze široce kombinovat s různými závity, jako například:

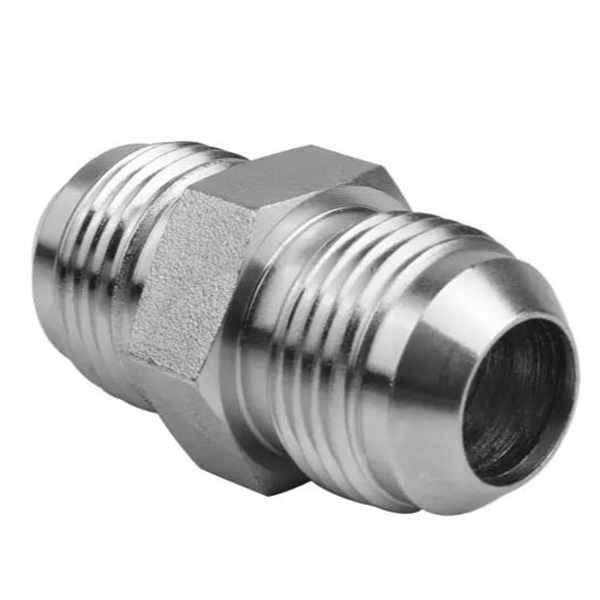

Hydraulické adaptéry JIC-JIC /1J

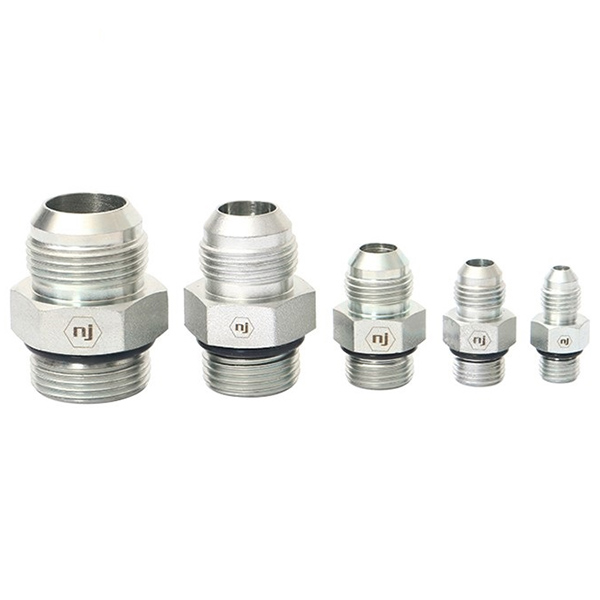

Hydraulické adaptéry JIC na ORB (s O-kroužkem)/1JO
Hydraulické adaptéry JIC na ORFS (těsnění O-kroužkem)/1JF
Hydraulické adaptéry JIC na NPTF s úhlem 90 stupňů/1JN9

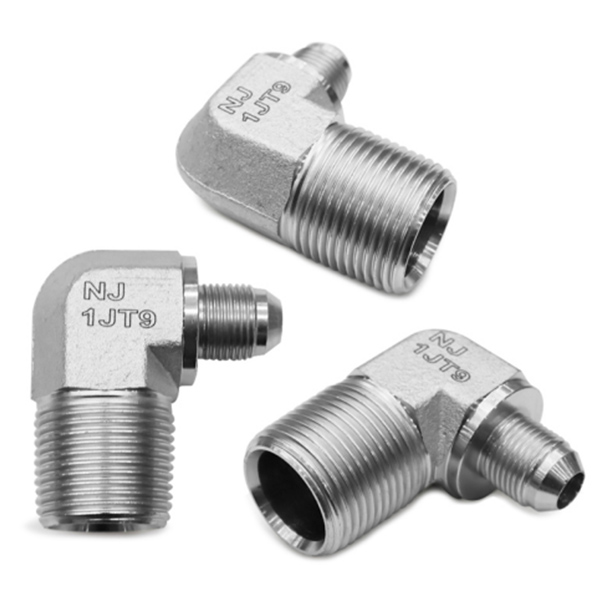

Hydraulické adaptéry JIC na BSPT s úhlem 90 stupňů/1JT9

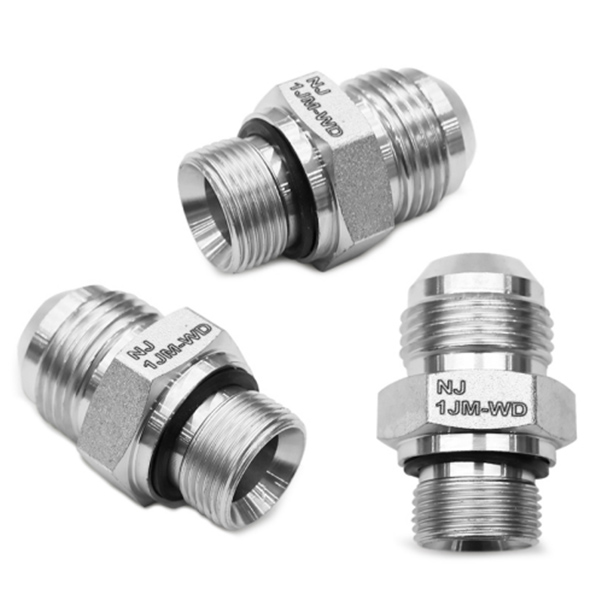

Hydraulické adaptéry JIC na metrické soustavy/1JM

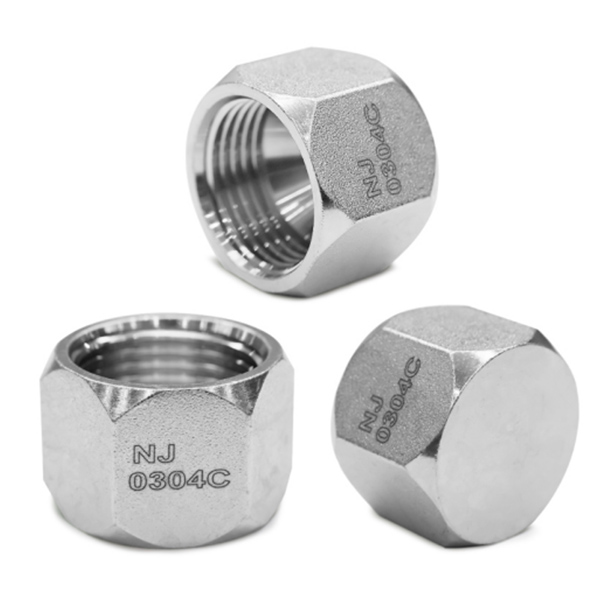

Víčka JIC /0304C

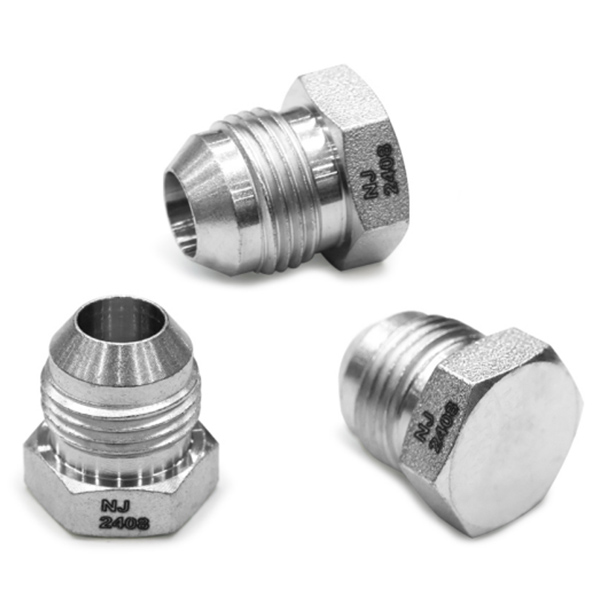

Zátky JIC/2408

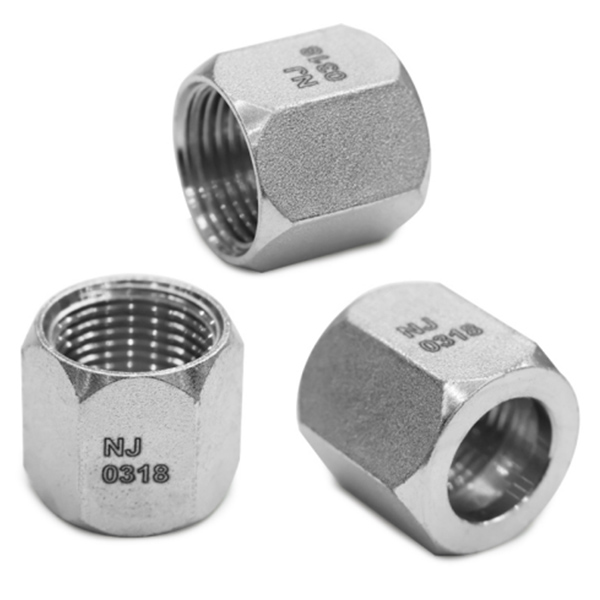

Matice trubky JIC/0318

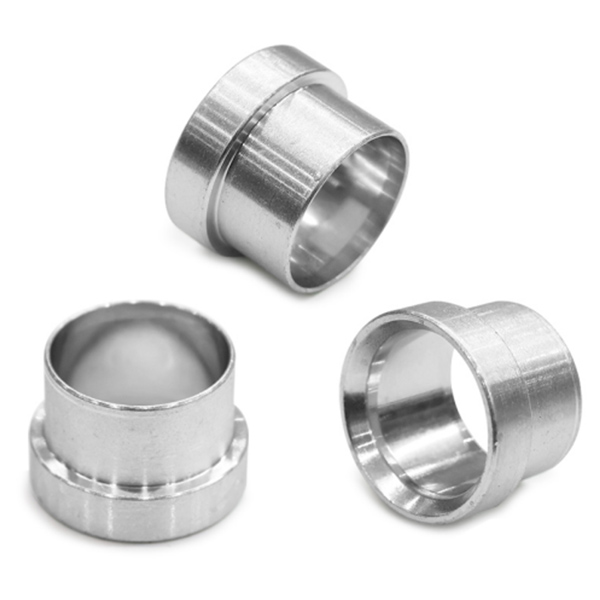

JIC objímka na trubku/0319Technická data
1. Hydraulické adaptéry JIC-JIC /1J
| A | B | Část č. | L | E | F | H1 | ||
| Pomlčka | JIC | Pomlčka | JIC | mm | mm | mm | mm | |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1J-0606 | 31 | 12 | 12 | 11.1 |
| -7 | 7 / 16-20 | -7 | 7/-16-20 | 1J-0707 | 35 | 14 | 14 | 12.7 |
| -8 | 2001-2-20 | -7 | 7/-16-20 | 1J-0807 | 35 | 14 | 14 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1J-0808 | 35 | 14 | 14 | 14.3 |
| -9 | 9 / 16-18 | -9 | 7 / 16-20 | 1J-0907 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1J-0908 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1J-0909 | 36 | 14 | 14 | 15.9 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1J-1207 | 38 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1J-1209 | 39 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1J-1212 | 41 | 17 | 17 | 20.6 |
| -14 | 2007-8-14 | -7 | 7/-16-20 | 1J-1407 | 43 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -8 | 1 / 2-20 | 1J-1408 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1J-1409 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1J-1412 | 45 | 19 | 17 | 23.8 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1J-1414 | 48 | 19 | 19 | 23.8 |
| -17 | 1.1 / 16-12 | -7 | 7 / 16-20 | 1J-1707 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1J-1709 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -12 | 7 / 16-20 | 1J-1712 | 50 | 22 | 17 | 28.6 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1J-1714 | 52 | 22 | 19 | 28.6 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1J-1717 | 55 | 22 | 22 | 28.6 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1J-1917 | 55 | 23 | 22 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1J-1919 | 56 | 23 | 23 | 31.8 |
| -21 | 1.5 / 16-12 | -7 | 7 / 16-20 | 1J-2107 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -9 | 9 / 16-18 | 1J-2109 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1J-2112 | 51 | 23 | 17 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1J-2114 | 53 | 23 | 19 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1J-2117 | 56 | 23 | 22 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1J-2121 | 57 | 23 | 23 | 34.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1J-2617 | 59 | 24 | 22 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1J-2621 | 61 | 24 | 23 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1J-2626 | 62 | 24 | 24 | 42.9 |
| -30 | 1.7 / 8-12 | -17 | 1.1 / 16-12 | 1J-3017 | 64 | 28 | 22 | 50.8 |
| -30 | 1.7 / 8-12 | -21 | 1.5 / 16-12 | 1J-3021 | 66 | 28 | 23 | 50.8 |
| -30 | 1.7 / 8-12 | -26 | 1.5 / 8-12 | 1J-3026 | 67 | 28 | 24 | 50.8 |
| -30 | 1.7 / 8-12 | -30 | 1.7 / 8-12 | 1J-3030 | 70 | 28 | 28 | 50.8 |
| -40 | 2.1 / 2-12 | -21 | 1.5 / 16-12 | 1J-4021 | 76 | 34 | 23 | 66.7 |
| -40 | 2.1 / 2-12 | -26 | 1.5 / 8-12 | 1J-4026 | 77 | 34 | 24 | 66.7 |
| -40 | 2.1 / 2-12 | -30 | 1.7 / 8-12 | 1J-4030 | 80 | 34 | 28 | 66.7 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1J-4040 | 86 | 34 | 34 | 66.7 |
2. Hydraulické adaptéry JIC na ORB (s O-kroužkem)/1JO
| A | B | Část č. | L | E | F | H1 | ||
| Pomlčka | JIC | Pomlčka | OSN | mm | mm | mm | mm | |
| -5 | 5 / 16-24 | -7 | 7 / 16-20 | 1JO-0507 | 29 | 12 | 9 | 14.3 |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1JO-0606 | 28 | 12 | 8 | 12.7 |
| -6 | 2003-8-24 | -7 | 7 / 16-20 | 1JO-0607 | 29 | 12 | 9 | 14.3 |
| -7 | 7 / 16-20 | -7 | 7 / 16-20 | 1JO-0707 | 29 | 14 | 9 | 14.3 |
| -7 | 7 / 16-20 | -8 | 1 / 2-20 | 1JO-0708 | 29 | 14 | 9 | 15.9 |
| -7 | 7 / 16-20 | -9 | 9 / 16-18 | 1JO-0709 | 30 | 14 | 10 | 17.5 |
| -7 | 7 / 16-20 | -12 | 3 / 4-16 | 1JO-0712 | 33 | 14 | 11 | 22.2 |
| -7 | 7 / 16-20 | -14 | 7 / 8-14 | 1JO-0714 | 38 | 14 | 13 | 25.4 |
| -7 | 7 / 16-20 | -17 | 1.1 / 16-12 | 1JO-0717 | 42 | 14 | 15 | 31.8 |
| -7 | 7 / 16-20 | -21 | 1.5 / 16-12 | 1JO-0721 | 43 | 14 | 15 | 38.1 |
| -8 | 2001-2-20 | -7 | 7 / 16-20 | 1JO-0807 | 31 | 14 | 9 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1JO-0808 | 29 | 14 | 9 | 15.8 |
| -8 | 2001-2-20 | -9 | 9 / 16-18 | 1JO-0809 | 33 | 14 | 9 | 17.5 |
| -8 | 2001-2-20 | -12 | 3 / 4-16 | 1JO-0812 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -7 | 7 / 16-20 | 1JO-0907 | 29 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1JO-0908 | 30 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1JO-0909 | 30 | 14 | 10 | 17.5 |
| -9 | 9 / 16-18 | -12 | 3 / 4-16 | 1JO-0912 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -14 | 7 / 8-14 | 1JO-0914 | 37 | 14 | 13 | 25.4 |
| -9 | 9 / 16-18 | -17 | 1.1 / 16-12 | 1JO-0917 | 40 | 14 | 15 | 31.8 |
| -9 | 9 / 16-18 | -21 | 1.5 / 16-12 | 1JO-0921 | 43 | 14 | 15 | 38.1 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1JO-1207 | 34 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -8 | 1 / 2-20 | 1JO-1208 | 38 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1JO-1209 | 35 | 17 | 10 | 22.2 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1JO-1212 | 36 | 17 | 11 | 22.2 |
| -12 | 2003-4-16 | -14 | 7 / 8-14 | 1JO-1214 | 40 | 17 | 13 | 25.4 |
| -12 | 2003-4-16 | -17 | 1.1 / 16-12 | 1JO-1217 | 43 | 17 | 15 | 31.8 |
| -12 | 2003-4-16 | -21 | 1.5 / 16-12 | 1JO-1221 | 43 | 17 | 15 | 38.1 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1JO-1409 | 43 | 19 | 9 | 25.4 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1JO-1412 | 39 | 19 | 11 | 25.4 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1JO-1414 | 43 | 19 | 13 | 25.4 |
| -14 | 2007-8-14 | -17 | 1.1 / 16-12 | 1JO-1417 | 46 | 19 | 15 | 31.8 |
| -14 | 2007-8-14 | -21 | 1.5 / 16-12 | 1JO-1421 | 46 | 19 | 15 | 38.1 |
| -14 | 2007-8-14 | -26 | 1.5 / 8-12 | 1JO-1426 | 50 | 19 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1JO-1709 | 47 | 22 | 9 | 31.8 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-16 | 1JO-1712 | 43 | 22 | 11 | 31.8 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1JO-1714 | 45 | 22 | 13 | 31.8 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1717 | 48 | 22 | 15 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1719 | 48 | 22 | 15 | 34.9 |
| -17 | 1.1 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1721 | 48 | 22 | 15 | 38.1 |
| -17 | 1.1 / 16-12 | -26 | 1.5 / 8-12 | 1JO-1726 | 48 | 22 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -30 | 1.7 / 8-12 | 1JO-1730 | 55 | 22 | 15 | 54 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1917 | 51 | 23 | 15 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1919 | 51 | 23 | 15 | 34.9 |
| -19 | 1.3 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1921 | 51 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1JO-2112 | 51 | 23 | 11 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1JO-2114 | 47 | 23 | 13 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1JO-2117 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JO-2119 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1JO-2121 | 49 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -26 | 1.5 / 8-12 | 1JO-2126 | 55 | 23 | 15 | 47.6 |
| -21 | 1.5 / 16-12 | -30 | 1.7 / 8-12 | 1JO-2130 | 56 | 23 | 15 | 54 |
| -26 | 1.5 / 8-12 | -14 | 7 / 8-14 | 1JO-2614 | 57 | 24 | 13 | 42.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1JO-2617 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1JO-2621 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1JO-2626 | 55 | 24 | 15 | 47.6 |
| -26 | 1.5 / 8-12 | -30 | 1.7 / 8-12 | 1JO-2630 | 55 | 24 | 15 | 54 |
| -30 | 1.7-8-12 | -26 | 1.5 / 8-12 | 1JO-3026 | 60 | 28 | 15 | 54 |
| -30 | 1.7-8-12 | -30 | 1.7 / 8-12 | 1JO-3030 | 58 | 28 | 15 | 54 |
| -30 | 1.7 / 8-12 | -40 | 2.1 / 2-12 | 1JO-3040 | 64 | 28 | 15 | 69.9 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1JO-4040 | 66 | 34 | 15 | 69.9 |
3. Hydraulické adaptéry JIC na ORFS (těsnění O-kroužkem)/1JF
| Vlákno A | Vlákno B | Část č. | L | E | F | H1 | ||
| Pomlčka | JIC | Pomlčka | ORFS | mm | mm | mm | mm | |
| -07 | 7 / 16-20 | -09 | 9 / 16-18 | 1JF-0709 | 32 | 14 | 10 | 15.9 |
| -07 | 7 / 16-20 | -11 | 11 / 16-16 | 1JF-0711 | 34 | 14 | 11 | 19.1 |
| -09 | 9 / 16-18 | -11 | 11 / 16-16 | 1JF-0911 | 34 | 14 | 11 | 19.1 |
| -12 | 3 / 4-16 | -11 | 11 / 16-16 | 1JF-1211 | 38 | 17 | 11 | 22.2 |
| -12 | 3 / 4-16 | -13 | 13 / 16-16 | 1JF-1213 | 39 | 17 | 13 | 22.2 |
| -14 | 7 / 8-14 | -13 | 13 / 16-16 | 1JF-1413 | 40 | 19 | 13 | 25.4 |
| -14 | 7 / 8-14 | -16 | 1-14 | 1JF-1416 | 46 | 19 | 16 | 27.0 |
| -17 | 1.1 / 16-12 | -16 | 1-14 | 1JF-1716 | 50 | 22 | 16 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JF-1719 | 52 | 22 | 17 | 31.8 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JF-2119 | 55 | 23 | 17 | 38.1 |
| -21 | 1.5 / 16-12 | -23 | 1.7 / 16-12 | 1JF-2123 | 55 | 23 | 18 | 38.1 |
| -26 | 1.5 / 8-12 | -27 | 1.11 / 16-12 | 1JF-2627 | 58 | 24 | 18 | 44.5 |
4. Hydraulické adaptéry s úhlem 90 stupňů JIC na NPTF/1JN9
| Vlákno A | Vlákno B | Část č. | E | F | S1 | |||
| Pomlčka | JIC | Pomlčka | NPT | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-27 | 1JN9-0702 | 25 | 21 | 11 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-18 | 1JN9-0704 | 27 | 26 | 14 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-18 | 1JN9-0706 | 30 | 31 | 19 | |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JN9-0708 | 31 | 37 | 22 | |
| -07 | 7 / 16-20 | -12 | 3 / 4-14 | 1JN9-0712 | 33 | 44 | 27 | |
| -08 | 1 / 2-20 | -02 | 1 / 8-27 | 1JN9-0802 | 27 | 24 | 14 | |
| -08 | 1 / 2-20 | -04 | 1 / 4-18 | 1JN9-0804 | 27 | 26 | 14 | |
| -08 | 1 / 2-20 | -06 | 3 / 8-18 | 1JN9-0806 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -02 | 1 / 8-27 | 1JN9-0902 | 27 | 21 | 14 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-18 | 1JN9-0904 | 27 | 26 | 14 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-18 | 1JN9-0906 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JN9-0908 | 32 | 37 | 22 | |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JN9-0912 | 33 | 40 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-18 | 1JN9-1204 | 32 | 29 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-18 | 1JN9-1206 | 32 | 31 | 19 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JN9-1208 | 35 | 37 | 22 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JN9-1212 | 38 | 44 | 27 | |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JN9-1216 | 39 | 50 | 33 | |
| -14 | 7 / 8-14 | -04 | 1 / 4-18 | 1JN9-1404 | 38 | 34 | 22 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-18 | 1JN9-1406 | 38 | 33 | 22 | |
5. Hydraulické adaptéry s úhlem 45 stupňů JIC na BSPP/1JG4
| A | B | Část č. | E | F | S1 | H | |||
| Pomlčka | JIC | Pomlčka | BSPP | mm | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JG4-0702 | 18 | 22 | 11 | 14 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JG4-0704 | 22 | 26 | 14 | 19 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JG4-0706 | 23 | 33 | 19 | 22 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JG4-0904 | 22 | 28 | 14 | 19 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JG4-0906 | 23 | 32 | 19 | 22 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JG4-0908 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JG4-1204 | 25 | 31 | 19 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JG4-1206 | 25 | 32 | 19 | 22 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JG4-1208 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-12 | 1JG4-1212 | 30 | 37 | 27 | 32 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JG4-1406 | 28 | 33 | 22 | 22 | |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JG4-1408 | 28 | 36 | 22 | 27 | |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JG4-1412 | 32 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JG4-1708 | 33 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JG4-1712 | 33 | 37 | 27 | 32 | |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JG4-1716 | 35 | 44 | 33 | 41 | |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JG4-2116 | 42 | 44 | 33 | 41 | |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JG4-2620 | 40 | 47 | 41 | 50 | |
| -30 | 1.7 / 8-12 | -24 | 1.1.2-11 | 1JG4-3024 | 45 | 51 | 48 | 55 | |
6. Hydraulické adaptéry s úhlem 90 stupňů z JIC na BSPT/1JT9
| A | B | Část č. | E | F | S1 | ||
| Pomlčka | JIC | Pomlčka | PTSD | mm | mm | mm | |
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JT9-0702 | 25 | 21 | 11 |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JT9-0704 | 27 | 26 | 14 |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JT9-0706 | 28 | 28.4 | 19 |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JT9-0708 | 30 | 36 | 22 |
| -08 | 1 / 2-20 | -02 | 1 / 8-28 | 1JT9-0802 | 27 | 24 | 14 |
| -08 | 1 / 2-20 | -04 | 1 / 4-19 | 1JT9-0804 | 27 | 26 | 14 |
| -08 | 1 / 2-20 | -06 | 3 / 8-19 | 1JT9-0806 | 28 | 28.4 | 19 |
| -09 | 9 / 16-18 | -02 | 1 / 8-28 | 1JT9-0902 | 27 | 24 | 14 |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JT9-0904 | 27 | 26 | 14 |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JT9-0906 | 29 | 29.0 | 19 |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JT9-0908 | 32 | 36 | 22 |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JT9-0912 | 35 | 44 | 27 |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JT9-1204 | 32 | 28 | 19 |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JT9-1206 | 32 | 31 | 19 |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JT9-1208 | 35 | 36 | 22 |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JT9-1212 | 38 | 43 | 27 |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JT9-1216 | 43 | 50 | 33 |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JT9-1406 | 38 | 32 | 22 |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JT9-1408 | 37 | 36 | 22 |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JT9-1412 | 41 | 43 | 27 |
| -14 | 7 / 8-14 | -16 | 1-11 | 1JT9-1416 | 45 | 50 | 33 |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JT9-1708 | 44 | 40 | 27 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JT9-1712 | 44 | 43 | 27 |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JT9-1716 | 48 | 50 | 33 |
| -17 | 1.1 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-1720 | 49 | 57 | 41 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-14 | 1JT9-2112 | 49 | 48 | 33 |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JT9-2116 | 49 | 50 | 33 |
| -21 | 1.5 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-2120 | 51 | 57 | 41 |
| -26 | 1.5 / 8-12 | -16 | 1-11 | 1JT9-2616 | 56 | 57 | 41 |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-2620 | 53 | 57 | 41 |
| -26 | 1.5 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-2624 | 56 | 63 | 48 |
| -30 | 1.7 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-3020 | 63 | 63 | 48 |
| -30 | 1.7 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-3024 | 63 | 63 | 48 |
| -40 | 2.1 / 2-12 | -32 | 2-11 | 1JT9-4032 | 75 | 67 | 63 |
7. Hydraulické adaptéry JIC na metrické soustavy/1JM
| Vlákno A | Vlákno B | Část č. | L | E | F | H1 | ||
| Pomlčka | JIC | Pomlčka | metrický | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -6 | 6x1.0 | 1JM-0706 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -8 | 8x1.0 | 1JM-0708 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -10 | 10x1.0 | 1JM-0710ES | 30 | 14 | 8 | 14 |
| -7 | 7 / 16-20 | -12 | 12x1.5 | 1JM-0712ES | 36 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -14 | 14x1.5 | 1JM-0714ES | 39 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -16 | 16x1.5 | 1JM-0716ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -10 | 10x1.0 | 1JM-0910ES | 31 | 14 | 8 | 17 |
| -9 | 9 / 16-18 | -12 | 12x1.5 | 1JM-0912ES | 36 | 14 | 12 | 17 |
| -9 | 9 / 16-18 | -14 | 14x1.5 | 1JM-0914ES | 36 | 14 | 12 | 19 |
| -9 | 9 / 16-18 | -16 | 16x1.5 | 1JM-0916ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -18 | 18x1.5 | 1JM-0918ES | 37 | 14 | 12 | 24 |
| -9 | 9 / 16-18 | -20 | 20x1.5 | 1JM-0920ES | 40 | 14 | 14 | 27 |
| -9 | 9 / 16-18 | -22 | 22x1.5 | 1JM-0922ES | 40 | 14 | 14 | 27 |
| -12 | 2003-4-16 | -12 | 12x1.5 | 1JM-1212ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -14 | 14x1.5 | 1JM-1214ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -16 | 16x1.5 | 1JM-1216ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -18 | 18x1.5 | 1JM-1218ES | 39 | 17 | 12 | 24 |
| -12 | 2003-4-16 | -20 | 20x1.5 | 1JM-1220ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -22 | 22x1.5 | 1JM-1222ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -26 | 26x1.5 | 1JM-1226ES | 47 | 17 | 16 | 32 |
| -14 | 2007-8-14 | -14 | 14x1.5 | 1JM-1414ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -16 | 16x1.5 | 1JM-1416ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -18 | 18x1.5 | 1JM-1418ES | 42 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -20 | 20x1.5 | 1JM-1420ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -22 | 22x1.5 | 1JM-1422ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -26 | 26x1.5 | 1JM-1426ES | 49 | 19 | 16 | 32 |
| -17 | 1.1 / 16-12 | -18 | 18x1.5 | 1JM-1718ES | 45 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -20 | 20x1.5 | 1JM-1720ES | 46 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -22 | 22x1.5 | 1JM-1722ES | 49 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -24 | 24x1.5 | 1JM-1724 | 48 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -26 | 26x1.5 | 1JM-1726ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727 | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -28 | 28x1.5 | 1JM-1728 | 52 | 23 | 16 | 32 |
| -17 | 1.1 / 16-12 | -30 | 30x2.0 | 1JM-1730 | 52 | 22 | 16 | 36 |
| -21 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-1733ES | 52 | 22 | 16 | 38 |
| -21 | 1.5 / 16-12 | -26 | 26x1.5 | 1JM-2126ES | 53 | 23 | 18 | 36 |
| -21 | 1.5 / 16-12 | -27 | 27x2.0 | 1JM-2127ES | 53 | 23 | 20 | 36 |
| -26 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-2133ES | 55 | 23 | 18 | 41 |
| -21 | 1.5 / 16-12 | -42 | 42x2.0 | 1JM-2142ES | 57 | 23 | 20 | 50 |
| -26 | 1.5 / 8-12 | -42 | 42x2.0 | 1JM-2642ES | 58 | 24 | 20 | 50 |
| -30 | 1.7 / 8-12 | -48 | 48x2.0 | 1JM-3048ES | 65 | 28 | 22 | 55 |
Detaily
Hydraulické fitinky JIC se v oboru staly populárními díky svým četným výhodám. Tyto fitinky nabízejí bezpečné a spolehlivé spojení, které je pro hydraulické systémy nezbytné. Zde jsou některé klíčové výhody používání hydraulických fitinek JIC:
1. Těsné spojení: Tvarovky JIC zajišťují těsné utěsnění, které zabraňuje úniku a zajišťuje efektivní provoz hydraulických systémů.
2. Snadná instalace: Tvarovky JIC se rychle a snadno instalují, což šetří čas a náklady na práci.
3. Odolné a dlouhotrvající: Tyto armatury jsou vyrobeny z vysoce kvalitních materiálů, díky čemuž jsou odolné a odolné vůči opotřebení. To zajišťuje dlouhou životnost armatur.
4. Všestranné použití: Fitinky JIC jsou kompatibilní s širokou škálou hydraulických systémů a zařízení, což z nich činí všestrannou volbu pro různé aplikace.
5. Vysoký tlak: Tvarovky JIC odolávají vysokým tlakům, díky čemuž jsou vhodné pro použití v náročných hydraulických aplikacích.
6. Standardizovaný design: Tvarovky JIC se řídí standardizovaným designem, který umožňuje zaměnitelnost a kompatibilitu s jinými armaturami, čímž se snižuje pravděpodobnost chyb během instalace.
Závěrem lze říci, že hydraulické armatury JIC nabízejí řadu výhod, díky nimž jsou oblíbenou volbou pro hydraulické systémy. Jejich těsné spojení, snadná instalace, odolnost, všestrannost, vysoká tlaková odolnost a standardizovaný design z nich činí ideální volbu pro různé aplikace.
Dodávky hydraulických armatur JIC do měst v
